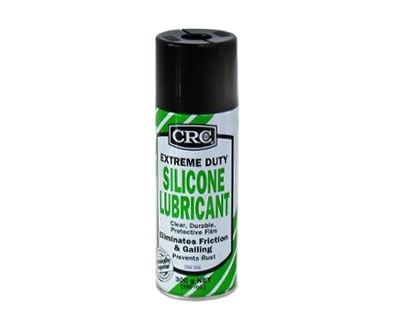

CRC Extreme Duty Silicone
High temperature - high pressure lubricant
CRC Extreme Duty Silicone Lubricant is a premium grade high quality silicone lubricant that exhibits excellent temperature viscosity and lubrication characteristics.
Features
- Reacts with a metal surface to provide metal to metal lubrication.
- Won't melt or freeze.
- Thin, clear, odourless film is low in toxicity.
- Can be used as a mould release.
- Ideal for use in precision instruments, vending machines, bearings in high ambient temperature applications, rolling and sliding mechanisms, rubber seals, clocks.
Approvals
Physical Properties
| Effective Temperature Range | -38°C to 316°C |
| Thermal Conductivity @ 24°C | 0.088 BTU/FT/HR/°C |
| Dielectric Constant @ 100 cycles. | 2.9 |
| Dielectric Strength (ASTM D-877) | 230 volts/mil |
| Dissipation Factor @ 100 cycles. | 0.0013 |
| Pressure Range | 0-20,000 psi |
| Flash Point (residual film) | 316°C |
| Fire Point (residual film) | Above 338°C |
Test Results
| Falex Test | 1200 psi | Ryder Gear Test: Scuff Loads | CRC Extreme Duty Silicone Lubricant…..430 kg/cm; Petroleum Oil……...215 kg/cm |
