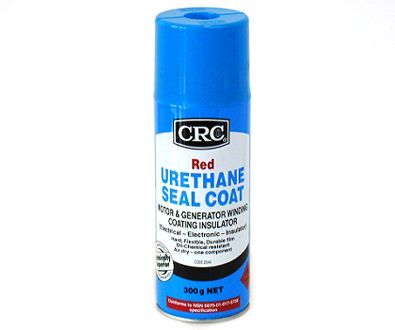

CRC Urethane Seal Coats
Electrical - Electronic Coating Insulator
CRC Urethane Seal Coat is a single component polyurethane coating that offers excellent adhesion. It is commonly used to re-insulate after repairs to electrical or electronic circuitry and electric motor rewinding.
Ideal For:
Protective coating for printed circuit boards.
Coating for: Electric motor windings, armature coils, boxes, controls, commutator ends, terminals, housings, transformer connectors, bus bars, solenoids, tools.
Features
- High di-electric strength
- Flexible and non-conductive film
- Dries fast
- Available in two colours - red or clear
- Red yields additional film resistance without sacrificing electrical values. It is most commonly used in all electrical motor rewinding.
Approvals
- USDA Authorised for use in Federally inspected Meat and Poultry Plants.
- NSN 5970-01-017-5738 RED
NSN 5970-01-101-7019 CLEAR
Physical Properties
| Flash Point (Open Cup) | 43°C |
| Specific Gravity (20°C) | 0.86 ± 0.02 |
| Viscosity (25°C) | 50cps |
| Elongation | 10% |
| Temperature Resistance | Should not exceed 100°C |
| Dielectric Strength (ASTM D877) | RED - 2000 Volts/Mil; CLEAR - 3000 Volts/Mil |
| Dielectric Constant | 4.04 at 60Hz; 3.77 at 10Hz; 3.23 at 10Hz |
| Volume Resistivity; Surface resistivity | 8.4 at 10 ohms/cm; 1.2 at 10 ohms/cm |
| Oil Resistance | Passes ASTM D115 |
| Average Film Thickness | Passes ASTM D115 |
Test Results
| Adhesion (Bell Laboratory Test) | Exceeds 10,000g |
